LDO Micron Plus Kit: Your Complete Guide to a Compact, High Precision 3D Printer Build

1. Introduction to the LDO Micron Plus Kit

If you’ve been exploring the world of DIY 3D printing for any length of time, you’ve probably noticed that bigger isn’t always better. There’s a growing movement of builders who want something compact, capable, and downright impressive — and that’s exactly where the LDO Micron Plus Kit steps in to steal the spotlight.

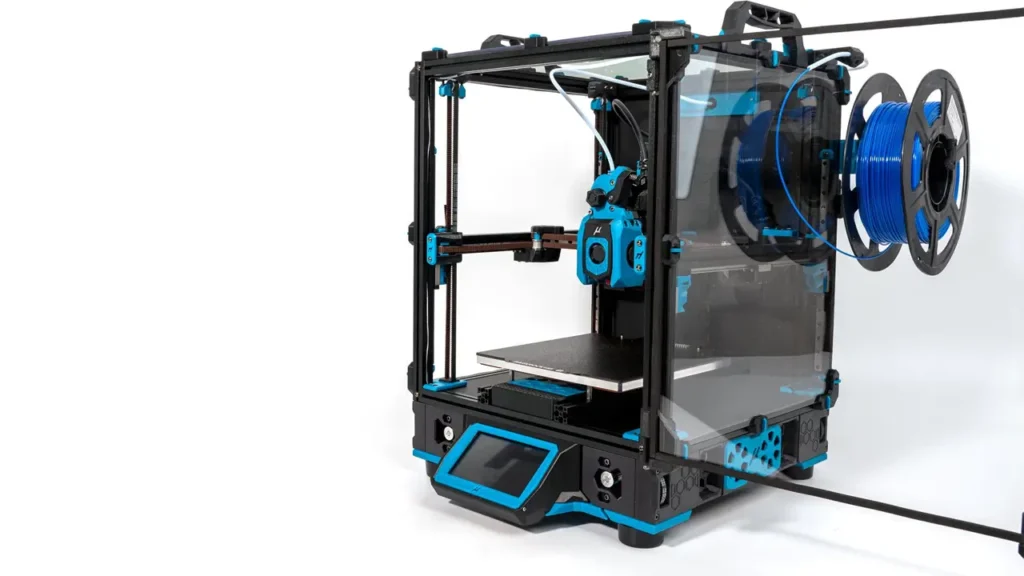

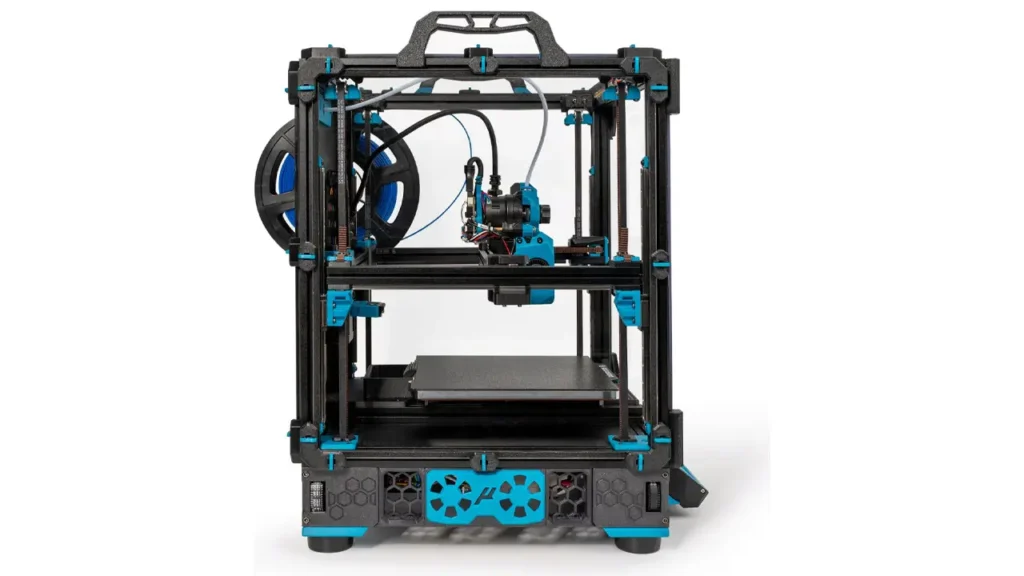

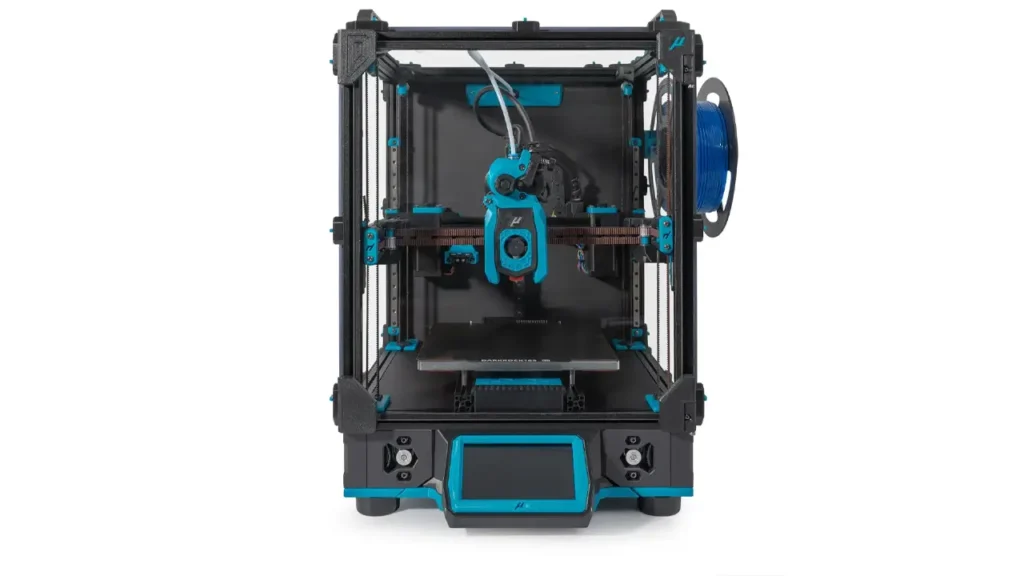

The LDO Micron Plus Kit is a compact high performance 3D printer kit that packs an enormous amount of engineering sophistication into a genuinely small footprint. We’re talking about a machine with a 180×180×165mm build volume that can tackle ABS, ASA, PC, PLA, PETG, and TPU with up to 10,000 mm/s² of acceleration — a figure that would make many full-sized printers blush.

What makes this kit particularly exciting isn’t just what it can do, but what it represents: a mature, community-backed, and manufacturer-refined take on high-end desktop 3D printing. The latest R1 revision of the kit has been tested and validated by HartK — the original designer of the Micron printer — along with multiple experienced community members, giving you confidence that what arrives in the box has already been put through its paces by people who know exactly what they’re looking at.

This article is your friendly, comprehensive guide to everything you need to know about the LDO Micron Plus Kit — from the brand behind it, to the architecture it’s built on, to the real-world experience of putting one together and using it. Whether you’re a curious newcomer or an experienced builder weighing your next project, you’re in the right place.

---

2. What is the LDO Motors 3D Printer Kit?

Before we get deep into the Micron Plus itself, it helps to understand who LDO Motors is and why their name on a kit actually means something.

LDO Motors Co., Ltd. is a professional manufacturer and exporter of electric motors and precision components with an excellent reputation built over many years in the industry. Over time, the company has grown well beyond its stepper motor roots. Today they are known for carrying a comprehensive range of high performance 3D printer components — from aluminum extrusions to full premium quality Voron 3D printer kits.

The company’s philosophy centers on empowering makers, hobbyists, and professionals with high-quality motors and 3D printer components, while actively maintaining a commitment to the open-source community. LDO provides reliable and durable components engineered for performance and longevity, comprehensive step-by-step guides to make the build process smooth, and dedicated support to help builders with any questions or issues that come up along the way.

This philosophy directly informs the LDO Motors 3D printer kit lineup. When LDO puts together a kit, they aren’t simply sourcing the cheapest available components and rebranding them. They select, often custom-manufacture, and validate each part before it goes into a box. For the Micron Plus specifically, this means you’re getting things like the LDO Leviathan control board — a purpose-designed motherboard — the Nitehawk-36 toolhead board, a brand new LDO Compact PSU, and custom-wound stepper motors with long shafts specifically designed for the Double Shear motor mount configuration used in this machine.

In the broader 3D printing community, LDO has earned a reputation for producing components that go into some of the most respected DIY builds around. They supply motors used by some of the biggest names in 3D printing, and their Voron kits in particular have become a benchmark for what a well-engineered DIY kit should look like. The Micron Plus is the natural extension of that track record into the compact printer space.

---

3. Voron 2.4 Compatible Architecture

One of the most important things to understand about the Micron Plus is where it comes from architecturally. The Micron was created by the PrintersForAnts community as a compact reimagination of the Voron V2.4 — essentially a scaled-down, redesigned version of one of the most beloved open-source 3D printers ever built, adapted for 1515 aluminum extrusions instead of the 2020 extrusions used in the original.

The Voron V2.4 itself is a landmark design in the DIY printing world. The Voron 2.4 uses a moving gantry with a fixed build plate, a unique four-point Z-axis belt system, and Quad Gantry Leveling — features that were originally found only in industrial machines and were brought to the maker community through the open-source Voron project. The original goal of the Voron project, back in 2015, was to create a no-compromise 3D printer that was fun to assemble and a joy to use — quiet, clean, reliable, and capable of operating 24 hours a day without requiring constant fiddling.

The Micron inherits all of that DNA. The Voron 2.4 compatible kit architecture means the Micron Plus uses the same CoreXY motion system, the same Quad Gantry Leveling approach, and the same Klipper firmware ecosystem. If you’ve ever used or built a Voron V2.4, the Micron Plus will feel instantly familiar in its logic and organization, even though the physical scale is dramatically different.

This compatibility is a huge advantage. It means the Micron Plus benefits from years of community refinement, a massive library of mods and upgrades, active Discord communities, and a wealth of documentation developed around the Voron ecosystem. You’re not starting from scratch with an obscure machine — you’re tapping into one of the richest open-source hardware communities in the 3D printing world.

The Micron Plus uses Klicky-style automatic bed leveling, which is well-documented and widely supported. It runs on Klipper firmware, which gives you the ability to tune and configure virtually every aspect of printer behavior through a clean web interface. And because the Leviathan board and Nitehawk-36 toolhead board used in the LDO kit are both well-documented, community resources for configuration and troubleshooting are plentiful.

---

4. Compact Design and Small Footprint

One of the most immediately compelling things about the LDO Micron Plus Kit is how much it achieves in such a small physical space. This is a small footprint 3D printer in the truest sense — yet it manages to deliver performance characteristics that rival or exceed machines two or three times its size.

The compact high performance 3D printer design philosophy behind the Micron Plus is rooted in a simple idea: for many users, and many use cases, you don’t need a 300mm or 350mm build volume. What you need is a machine that prints reliably, accurately, and quickly — and does it without dominating your workspace, consuming excessive power, or taking forever to heat up to operating temperature.

The Micron Plus delivers on all of these fronts. The 1515 extrusion frame is inherently stiffer relative to its size than a comparable 2020 frame, which means less flex and vibration during high-speed moves. The enclosed design — with panels available separately or as part of bundle kits from authorized resellers — creates a stable thermal environment that is essential for printing engineering-grade materials like ABS, ASA, and PC. The 300-watt bed heater heats up fast, getting you to printing temperatures in a fraction of the time you’d wait with a larger machine.

The small footprint also has practical advantages in terms of filament consumption during calibration and test prints. When you’re dialing in settings, you use less material. When you’re printing functional parts — brackets, enclosures, jigs, tools — you can iterate rapidly. And because the machine is enclosed and efficient, you can place it in a wider range of environments without worrying about drafts disrupting print quality.

For makers who work in apartments, shared workshops, or home offices, the Micron Plus is a genuinely practical choice. It’s a machine you can keep on a desk, run during the evening, and trust to produce excellent results without requiring a dedicated print farm setup.

---

5. Precision Engineering Explained

The word “precision” gets thrown around a lot in 3D printing marketing, but in the case of the LDO Micron Plus Kit, it actually means something specific and verifiable. This is a precision 3D printer kit in the mechanical sense — designed from the ground up to minimize play, flex, and inconsistency in every axis of motion.

Let’s start with the motion system. The Micron Plus uses a CoreXY architecture, which means both X and Y axes are driven by a pair of motors acting in coordination through a belt system. This keeps the toolhead light — only the hotend moves, not the entire gantry with a motor attached — which enables higher accelerations without losing positional accuracy. The LDO kit specifies an acceleration of 10,000 mm/s², which is achievable precisely because the moving mass is kept so low.

The belts used in the LDO Micron Plus kit are genuine Gates belts — the same brand used in high-end industrial applications. These belts stretch minimally and maintain consistent tension over time, which directly translates to dimensional accuracy in your prints. Combined with Live Idlers for the X and Y joints, and precision pins for the ABZ pulleys, the drive system is tuned to eliminate the subtle sources of error that accumulate in less carefully engineered machines.

Linear motion is handled through precision linear rails — stainless steel options are available from LDO specifically for the Micron 160/180mm format. Linear rails provide much lower friction and much better straight-line accuracy than the rod-and-bearing systems found in many consumer printers. The rail carriages have very little play, which means that when you command the toolhead to move to a specific coordinate, it actually gets there.

The Double Shear motor mount is another notable precision feature. By supporting the motor shaft on both sides rather than just one (cantilever style), the Double Shear design eliminates the wobble and flex that can cause belt tension to vary as the motor rotates. Combined with the long-shaft LDO-35STH52-2004AH(S35) motors that are specifically designed for this mount, the result is a drive system with exceptional consistency.

The Igus spherical bearings used in the high-end motion kit version add another layer of refinement — these self-aligning bearings compensate for minor misalignments during assembly, reducing the sensitivity of print quality to assembly precision. For a high accuracy 3D printing kit, this kind of thoughtful component selection is what separates good results from great ones.

---

6. Modular 3D Printer System Benefits

One of the most forward-thinking aspects of the LDO Micron Plus design is its modular 3D printer system architecture. From the beginning, the Micron was designed to grow with its user — to accept upgrades, accommodate different toolheads, and integrate with expanding ecosystems of accessories.

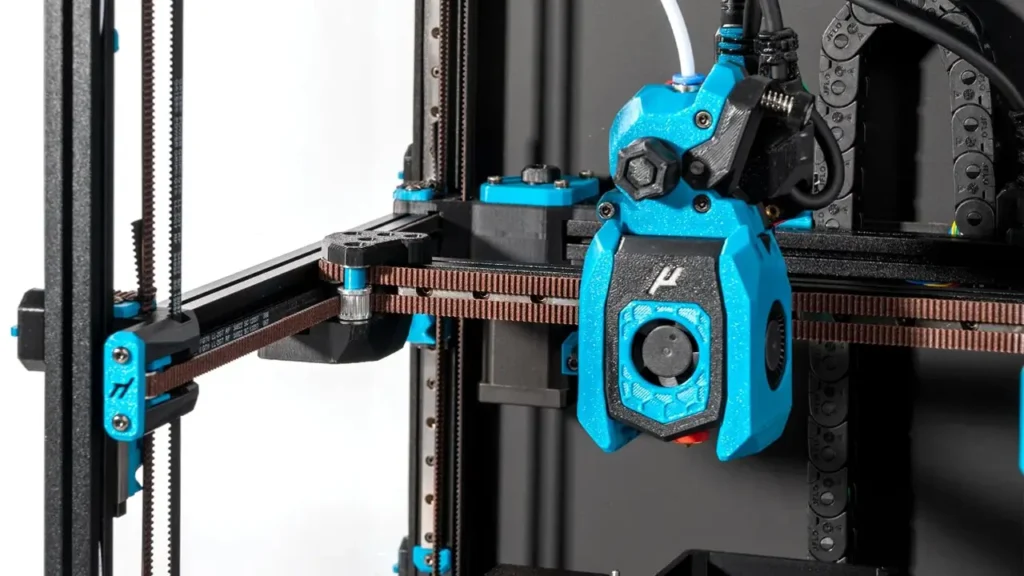

The most prominent expression of this modularity is the toolhead system. The LDO Micron Plus kit comes with the Nitehawk-36 toolhead board, which uses a USB-based communication protocol to connect to the Leviathan mainboard. This approach dramatically simplifies wiring — instead of running a harness of individual motor, thermistor, heater, and sensor wires from the toolhead to the electronics bay, you run a single USB cable alongside the motor power wire. Swapping toolheads becomes a much less daunting proposition when you only need to disconnect two cables.

The choice of hotend is left to the builder, which is itself a form of modularity. Compatible hotends include popular options like the Phaetus Rapido, and the kit architecture supports the Stealthburner toolhead design that is standard across much of the Voron ecosystem. This means you can choose a hotend based on your specific use case — high-temperature materials, high-flow printing, particular nozzle sizes — without being locked into whatever the manufacturer decided was appropriate at the time of kit design.

The LDO Leviathan V1.3 mainboard is another modular element. It’s a capable, community-supported board with multiple driver slots and connection options, designed specifically for Voron-style printers. Running Klipper firmware means that virtually any sensor, probe, or peripheral you want to add — ADXL345 accelerometer for input shaping, Beacon Contact probe for high-speed bed leveling, chamber thermistors, filament runout sensors — can be integrated with a configuration file edit rather than a hardware redesign.

The custom under-bed PCB for bed fans and filtration is a great example of the modular thinking at work here. Rather than wiring filtration fans directly off the mainboard with individual connectors, this PCB provides a purpose-built interface that simplifies both assembly and future modifications. It’s a small detail, but it speaks to the overall philosophy: design for the long term, not just the initial build.

For makers who enjoy evolving their machines over time — and in the Voron community, that’s most of them — the modular 3D printer system architecture of the Micron Plus is a major quality-of-life advantage.

---

7. LDO Micron Plus Specs Overview

Let’s get concrete. Here are the official LDO Micron Plus specs as documented by LDO Motion for the R1 kit:

Specification	Details
Print Volume	180 × 180 × 165 mm
Motion Architecture	CoreXY
Motherboard	LDO Leviathan V1.3
Toolhead Board	LDO Nitehawk-36
Single Board Computer	Raspberry Pi 4
Display	BTT Pi 4.3 inch touchscreen
Firmware	Klipper
Supported Filaments	ABS, ASA, PC, PLA, PETG, TPU
Filament Diameter	1.75 mm
Maximum Acceleration	10,000 mm/s²
Default Nozzle Diameter	0.4 mm
Max Bed Temperature	120°C
Bed Heater Power	300 W
Power Supply	LDO Compact PSU — 275W 24V + 25W 5V
Bed Leveling	Quad Gantry Leveling (QGL) + Klicky probe
Motors	LDO-35STH52-2004AH(S35), Double Shear mount
Belts	Genuine Gates belts
Bearings	Igus spherical bearings (motion kit version)
Frame	1515 aluminum extrusions
Kit Revision	R1 (current, tested by HartK and community)
Not Included in Kit	Hotend, printed parts

A few points worth highlighting from these specs. The 300W bed heater is remarkably powerful for a machine of this size — it means the bed reaches printing temperature very quickly, reducing the time you spend waiting before a print starts. The dual-output PSU (275W at 24V for motion and heating, 25W at 5V for the Raspberry Pi and logic) is a clean, purpose-built solution that keeps the electronics bay tidy. And the Quad Gantry Leveling system with Klicky probe means first-layer accuracy is largely automated — a significant quality-of-life benefit for everyday use.

---

8. Build Experience and Assembly

Here’s where the LDO Micron Plus Kit earns its classification as an advanced DIY 3D printer kit. This is not a beginner machine. If you’re assembling your first 3D printer and have never touched a Voron build, the Micron Plus will be challenging. But if you have some experience — or a good amount of patience and a willingness to learn — it is absolutely achievable, and the official LDO documentation makes a genuine effort to guide you through it.

LDO provides a detailed wiring guide specifically for the Micron Plus kit, covering everything from DIN rail component placement to stepper motor cable routing, AC inlet connection, and Raspberry Pi OS setup. The guide includes step-by-step instructions with diagrams, tables for motor cable positions (oriented from the perspective of standing in front of the printer looking toward it), and explicit safety reminders for AC wiring — including the instruction to check your work, and then check it again.

The build process involves several distinct phases. You’ll start with the frame assembly — the 1515 extrusions go together in a specific order, and precise alignment here pays dividends in print quality later. Then comes the motion system: installing the linear rails, the AB drive units with their Double Shear motor mounts, the Live Idlers, and routing and tensioning the Gates belts. After that, the electronics bay is populated on the DIN rails, the Leviathan board is configured, and the wiring harness is assembled and connected.

The Nitehawk-36 toolhead board simplifies the harness considerably — one ribbon cable connects the toolhead board to the Leviathan, and a small USB adapter PCB handles power delivery to the toolhead. For anyone who has wired up a traditional Voron toolhead harness with a dozen individual connectors, this is a genuinely welcome simplification.

The LDO Micron build review experience from community builders consistently highlights a few things: the quality of the components is noticeable and appreciated, the 1515 frame goes together cleanly when care is taken with alignment, and the wiring — while involved — is manageable with the official guide open in front of you. The custom under-bed PCB for the bed fans and filtration system is frequently cited as a thoughtful addition that makes the build cleaner and more organized than it might otherwise be.

Who is this kit for? It’s for the maker who has built a printer or two before, or who is comfortable following technical documentation carefully and asking questions in a community forum when something isn’t clear. It’s for the builder who wants a machine they genuinely understand — because when you assemble it yourself, you know exactly what every part does and how to fix it if something goes wrong. And it’s for the person who values the journey of the build as much as the destination of having a great printer.

---

9. Performance and Print Quality

So what does the LDO Micron Plus actually produce when you send it a job? The answer, based on official specifications and community experience, is: genuinely impressive results for a machine of its size.

The CoreXY motion system, tuned through Klipper’s input shaping functionality (which can be configured using the ADXL345 accelerometer that many builders add), allows the Micron Plus to operate at high speeds without the ringing artifacts that plague lower-quality machines. At 10,000 mm/s² of acceleration, the printer can complete small-to-medium functional parts in times that would surprise you given the build volume.

The high accuracy 3D printing kit credentials come through most clearly in dimensional accuracy and surface quality. The Gates belts maintain consistent tension, the precision pins in the ABZ pulleys eliminate wobble at the idlers, and the Live Idlers at the X/Y joints ensure smooth direction changes without backlash. The result is that walls are straight, corners are sharp, and small features resolve cleanly.

The enclosed design, combined with the 300W bed heater and a maximum bed temperature of 120°C, makes the Micron Plus a capable workhorse for engineering materials. ABS and ASA — materials notorious for warping when exposed to temperature fluctuations — print reliably in an enclosed environment where the chamber temperature is stable. PC (polycarbonate) is also on the supported materials list, though achieving the best results with PC will require attention to hotend temperature (which depends on your chosen hotend) and careful enclosure management.

The Klicky probe and Quad Gantry Leveling system ensure that the first layer — the foundation of every print — is laid down correctly every time. QGL compensates for any slight twist or tilt in the gantry by independently adjusting the four Z-axis lead screws, and the Klicky probe provides accurate mesh bed leveling data so the nozzle height is consistent across the entire build plate.

The 180mm Micron Plus is also compatible with Prusa Mini build plates, which are widely available and high quality. This compatibility was intentionally provisioned by the original designer and gives builders a ready-made source for a premium flexible build surface.

For makers printing functional parts — brackets, enclosures, hinges, jigs, tooling fixtures — the Micron Plus produces results that are dimensionally accurate and mechanically reliable. For those printing aesthetic models, the surface quality at standard layer heights is clean and detailed. The machine handles both use cases well, which is a reflection of how thoroughly the mechanical design has been thought through.

---

10. Final Verdict: Is the LDO Micron Plus Kit Worth It?

After working through every dimension of this machine — the brand, the architecture, the components, the build experience, and the output — the answer is a clear yes, with one important qualification.

The LDO Micron Plus Kit is worth it if you are the right kind of builder. This is not a plug-and-play machine. It’s a precision 3D printer kit that asks something of you: time, patience, attention to detail, and a willingness to engage with the technical documentation and community resources that surround it. If you bring those qualities to the build, you will end up with a machine that punches well above its weight class — a compact high performance 3D printer that can handle engineering materials, print at high speeds with excellent accuracy, and serve as the foundation for years of upgrades and experimentation.

The component quality throughout the kit is at the high end of what’s available in the DIY 3D printer market. LDO’s custom Leviathan board and Nitehawk-36 toolhead board are purpose-built for this type of machine. The genuine Gates belts, Igus spherical bearings, precision pins, and long-shaft motors in Double Shear mounts reflect a design philosophy that prioritizes doing things right over doing things cheaply. The 300W bed heater and brand new LDO Compact PSU round out a package that is well-considered from end to end.

The Voron 2.4 compatible architecture and Klipper firmware mean you’re buying into a rich ecosystem with years of community knowledge behind it. The R1 revision — tested by original designer HartK and multiple community members — gives you confidence that the design has been validated before you invest your time and money.

In the market for compact high-performance DIY printers, the LDO Micron Plus Kit occupies a clear position at the top. It isn’t the cheapest option, and it isn’t the easiest build. But it is one of the most thoughtfully engineered small-format 3D printer kits available, and for the maker who wants to build something they’re genuinely proud of — and print with it for years — that’s exactly what matters.

Category	Assessment
Component Quality	Excellent — purpose-built LDO electronics, Gates belts, Igus bearings
Build Difficulty	Advanced — recommended for experienced DIY builders
Print Accuracy	High — CoreXY with QGL, precision motion, and Klipper input shaping
Material Versatility	Strong — ABS, ASA, PC, PLA, PETG, TPU supported
Upgrade Potential	Excellent — modular design, Voron ecosystem compatibility
Footprint	Compact — 1515 frame, desk-friendly form factor
Community Support	Strong — Voron/PrintersForAnts ecosystem, active Discord
Overall Verdict	Highly recommended for experienced makers seeking compact precision

The LDO Micron Plus Kit is, in short, one of the most exciting things happening in the compact DIY 3D printer space right now. It brings serious engineering to a small package, backs it with a manufacturer who genuinely cares about quality, and connects you to a community of builders who are passionate about pushing what these machines can do. If that sounds like your kind of project — welcome to the build.

---
